A note on this case study: in this project, I take an inconsistent, vibe-coded product and systemised it, grounded in testing workshops rather than formal UX research methods.
This case study covers the design of Enterprise Singapore's no/low-code workflow builder, from concept through to production.
Processing officers at Enterprise Singapore were repeating the same manual data checks across cases (eg. re-keying figures, cross referencing documents by hand). The work was rule-based enough to automate, but out of reach without engineering support.
A no/low-code workflow builder that allow officers to automate repetitive data tasks like extracting figures from documents or checking data against reference files.

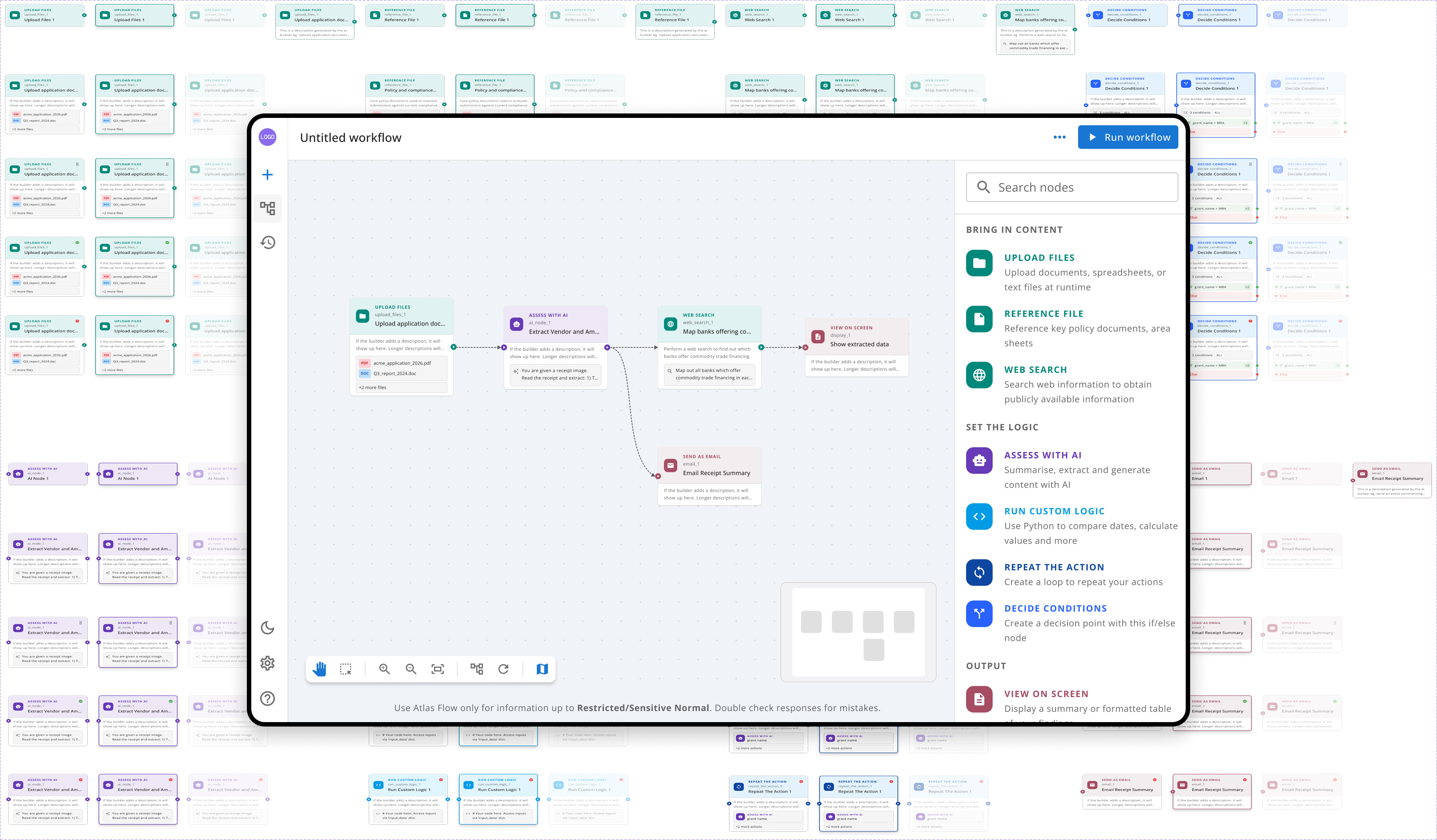

We started from process mapping sessions with officers, then vibe-coded a first working version directly off those requirements rather than starting from wireframes to get something real in front of users fast. Further sessions and testing workshops with small teams shaped the design from there.

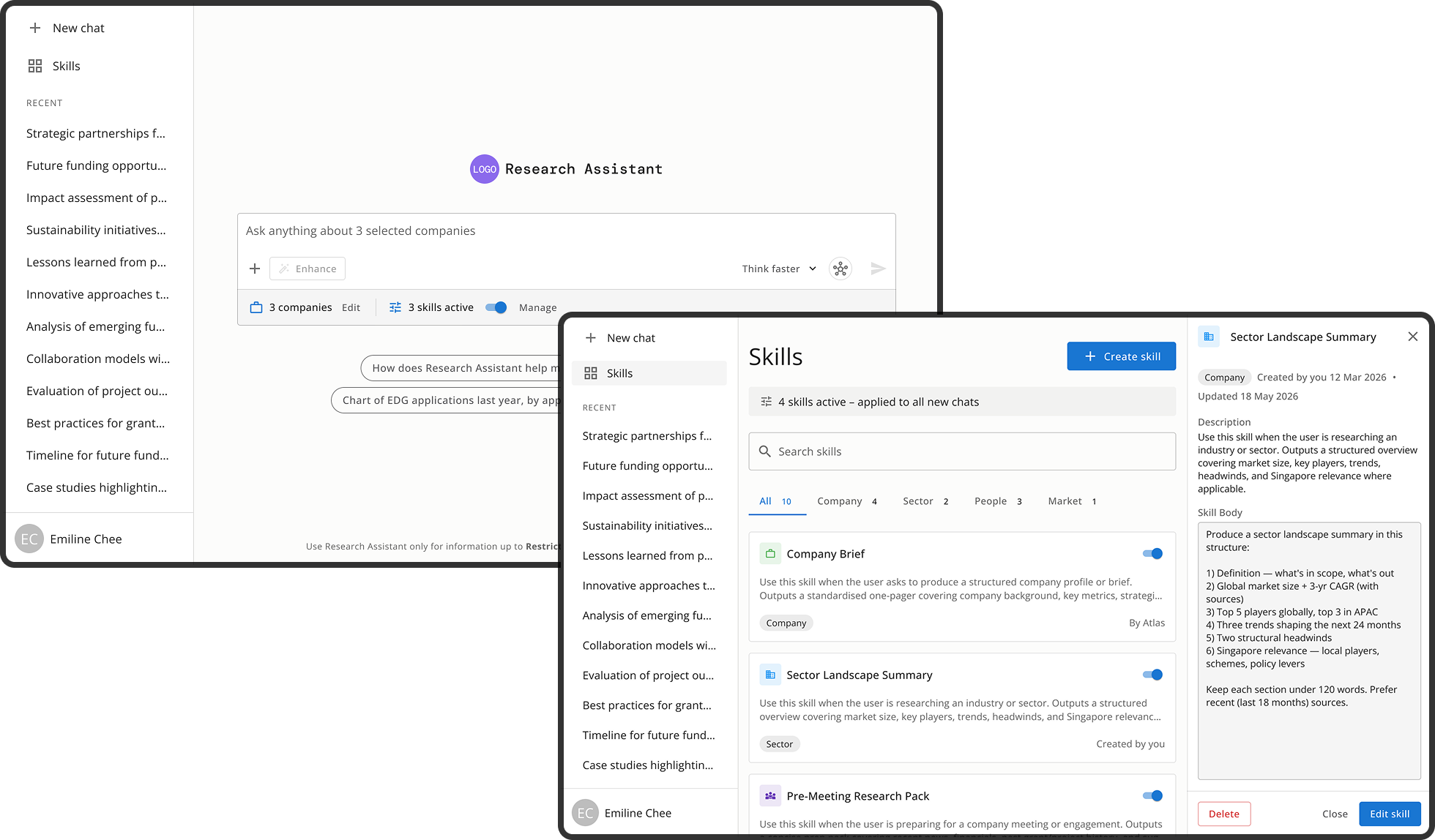

As the sole designer, I owned the designs of the canvas editor, node system, and configuration panels, working closely with the PM and front-end developer, and building on the same MUI design system as Research Assistant to keep the two products consistent for officers moving between them.

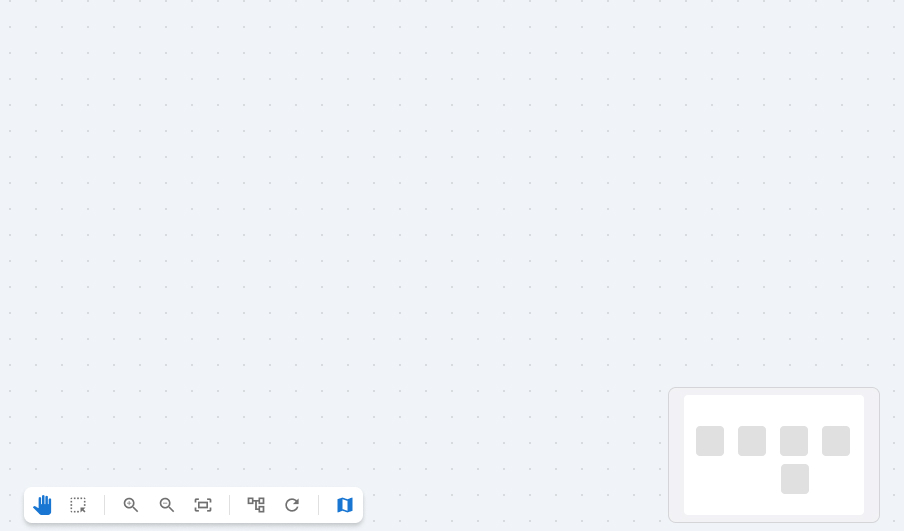

The canvas is the blank space officers build on — a dot-grid workspace with a floating action panel and a minimap preview panel for orienting on larger workflows

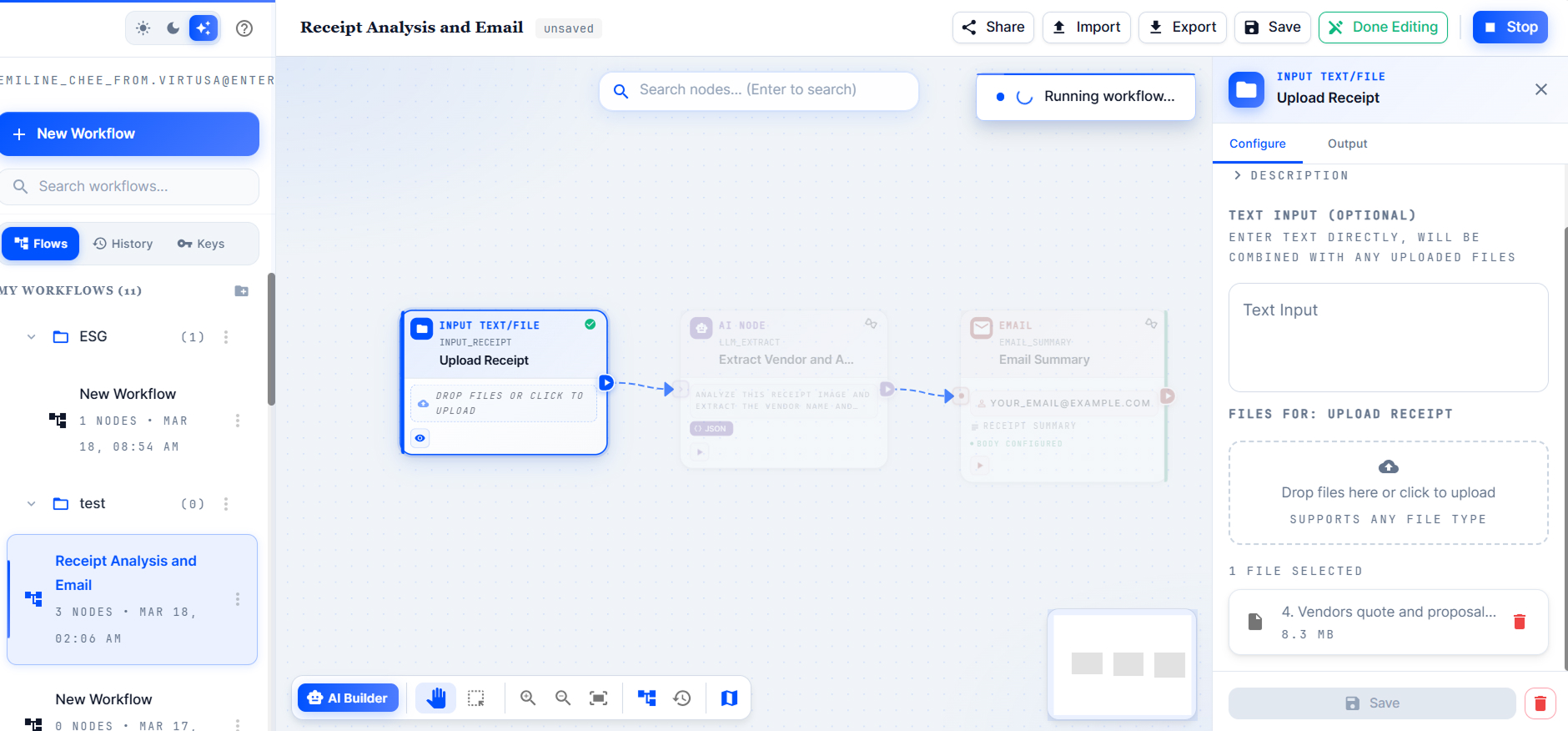

Watching officers build unguided surfaced a specific gap: mid-run, there was no way to tell what state a workflow was in without clicking into individual nodes. An officer would kick off a run and then have no reliable way to answer "is this still going, did it fail, or is it done?" from the canvas alone.

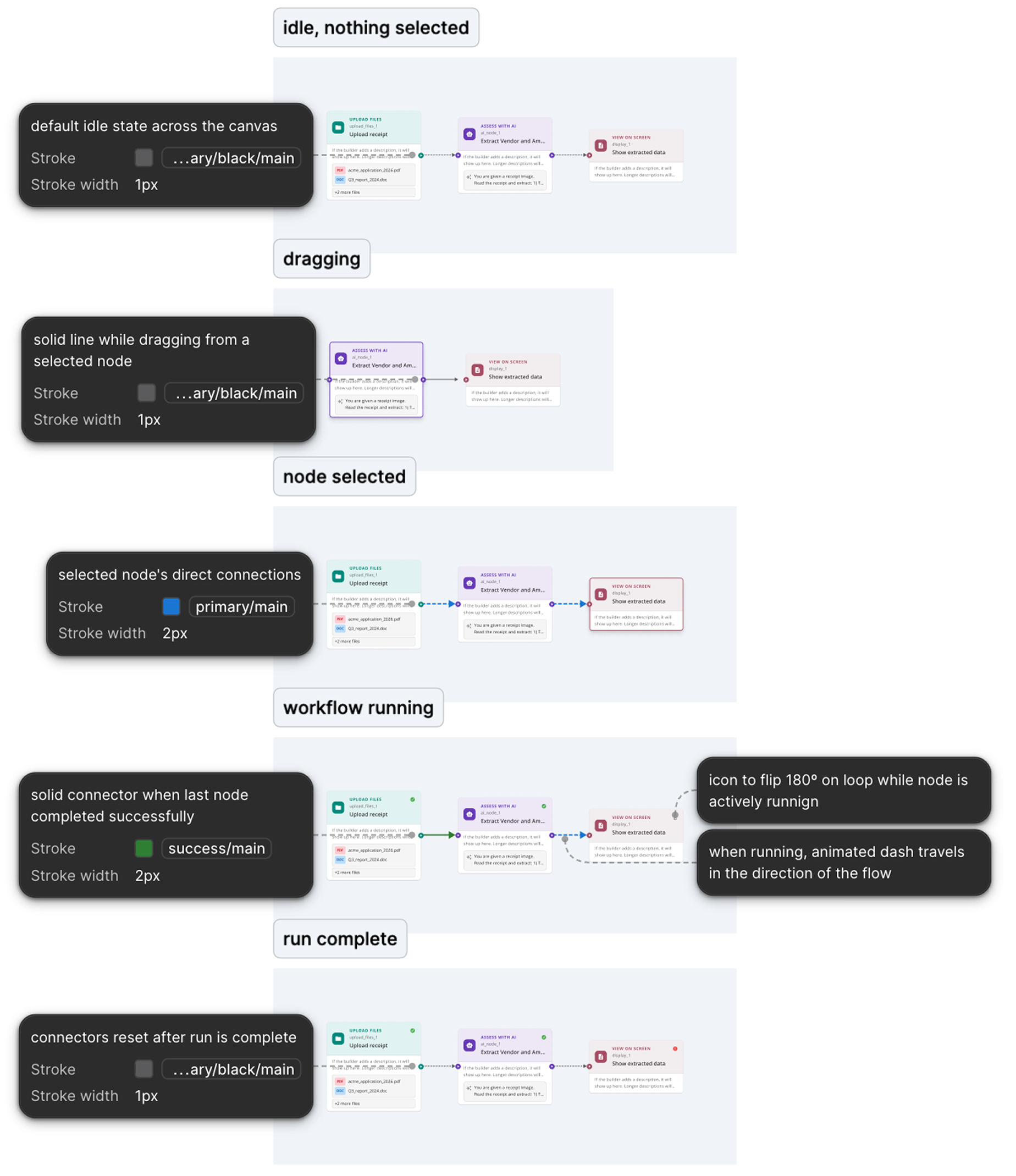

Most of the design work here went into solving that through connector states rather than through a separate status panel — keeping the answer on the canvas itself, next to the nodes it referred to. Connectors move through five states: idle, dragging, node selected, workflow running, and run complete.

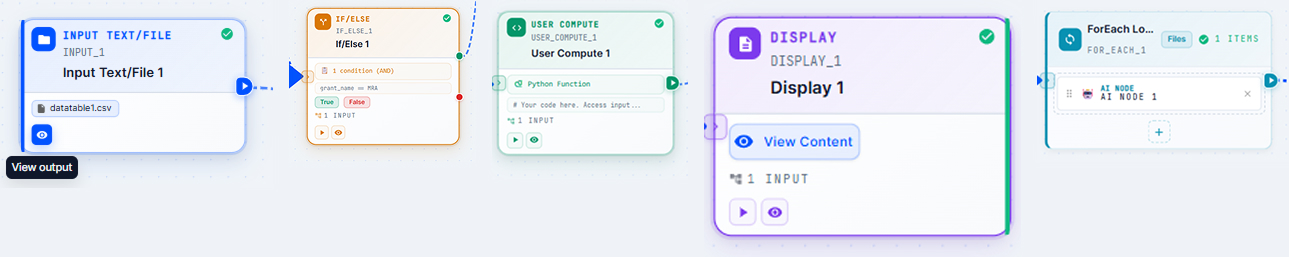

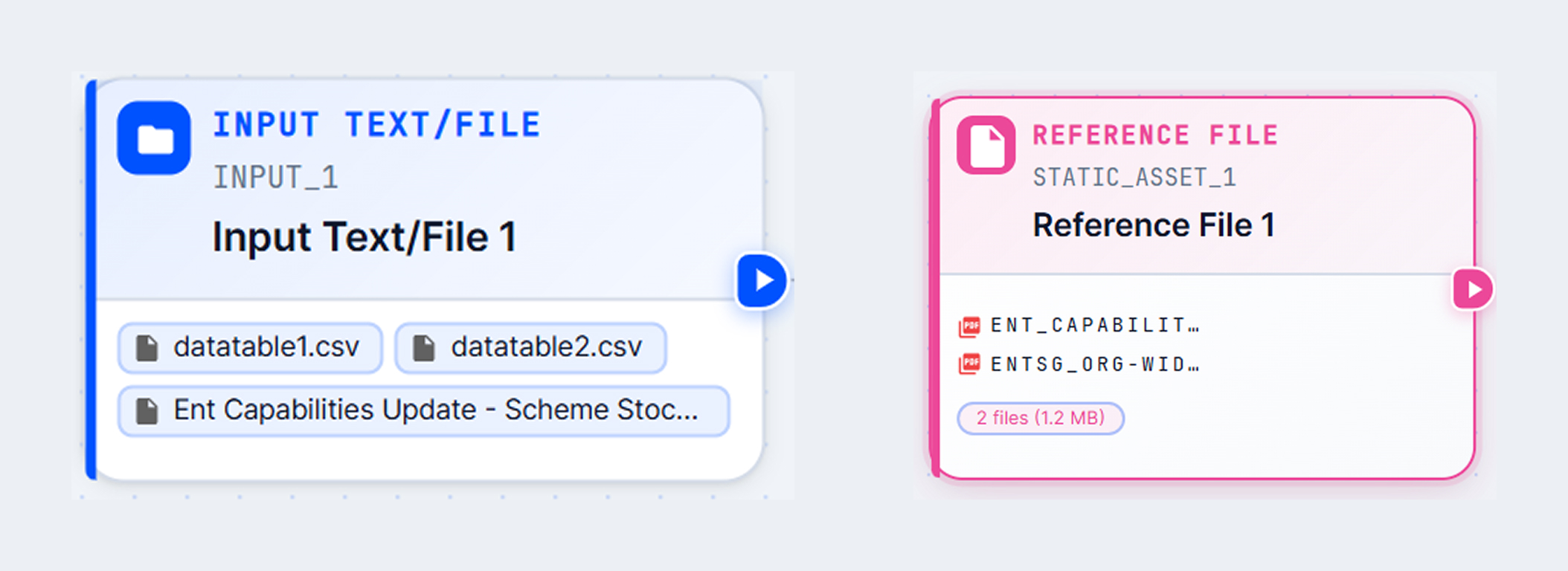

The clearest sign that the vibe-coded product hadn't been designed as a system was the nodes. For example, Input File was blue, Reference File was pink, and the two had different colours, card structures, and field layouts despite doing conceptually similar jobs.
The inconsistency went beyond colour too. Across categories, different nodes surfaced different kinds of information and actions directly on the card, with no shared logic for what belonged on the canvas versus inside the config panel.
If every node looked and behaved differently, officers had to learn each one individually rather than transferring what they already knew, which worked against the point of a no-code tool built for people without technical backgrounds.
I worked through the node library by category — input nodes first (upload files, reference files, web search), since those were what every workflow started with, then output nodes (display, email), then the more complex processing nodes (AI, Python, loop, if/else), where the underlying logic was hardest to hide. Data nodes are the next stage.

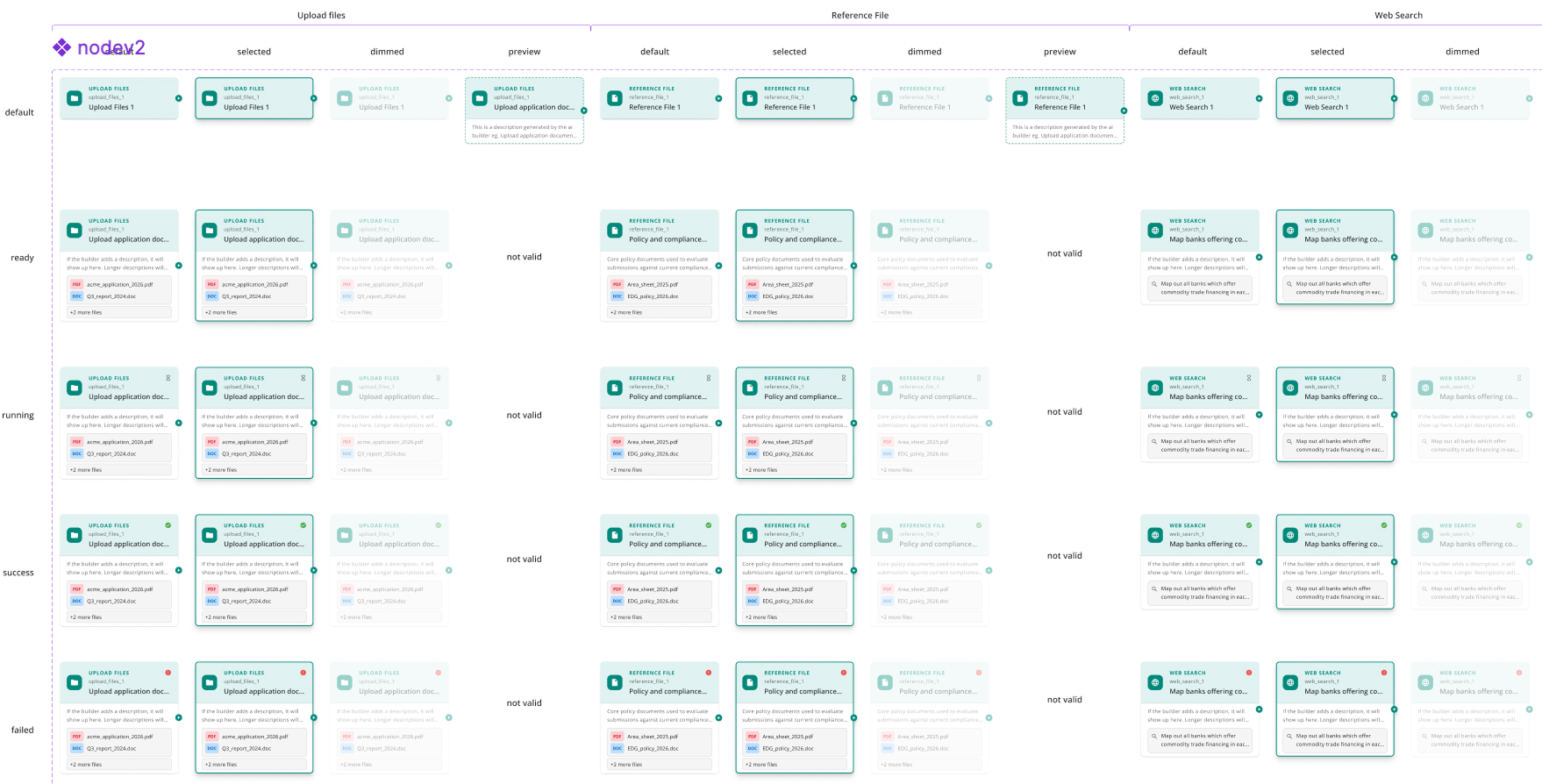

Consistency was the focus from here on. I brought nodes within each category onto a shared visual system — one colour family per category, a common card layout, matching icon treatment, and the same state set (default, ready, running, success, failed). An officer who understood the Upload Files node could now read the Reference File one without re-learning it.

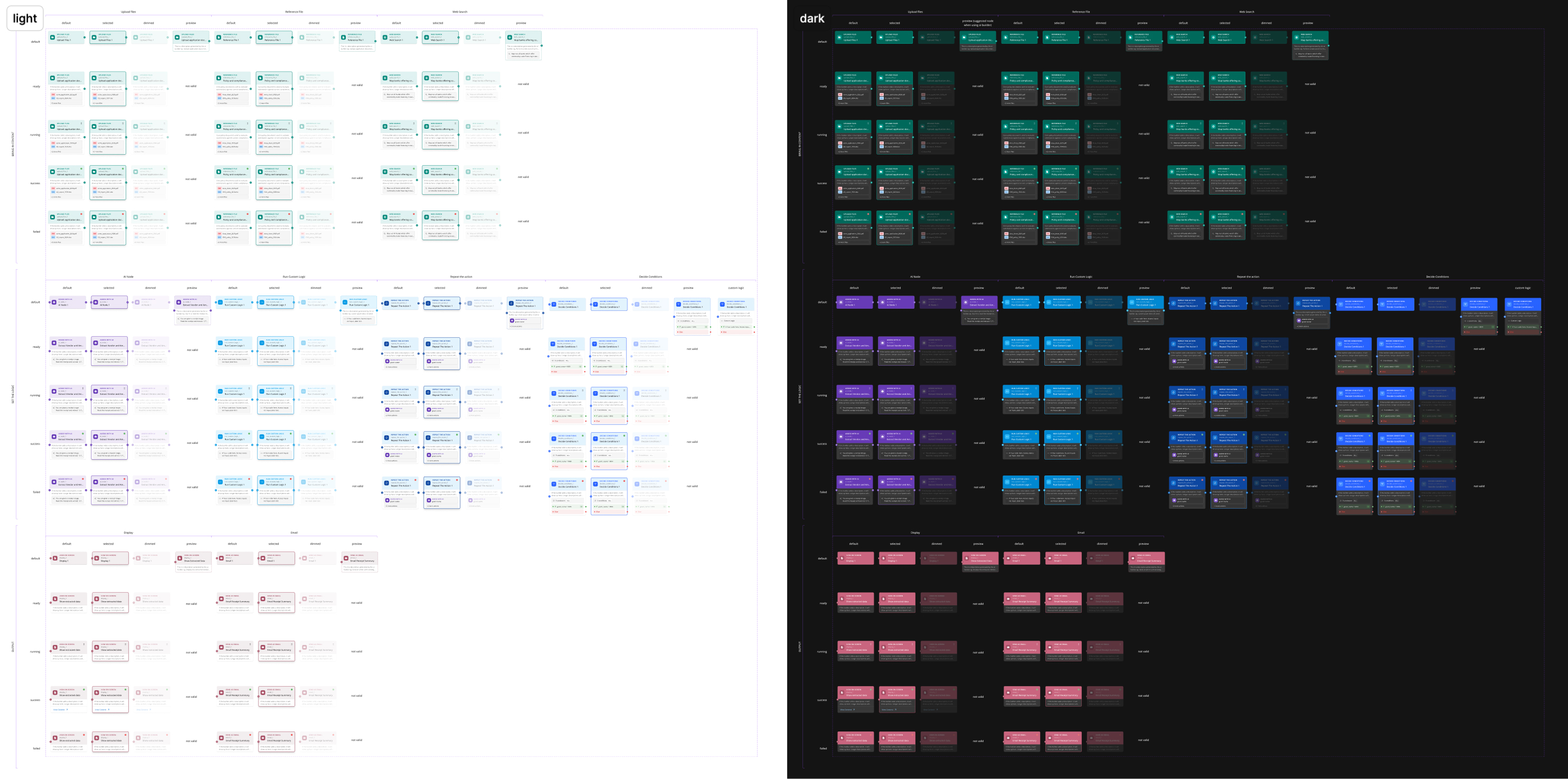

I applied the same approach across every category, so the node library reads as one system regardless of what a node does or how complex its underlying logic is in both light and dark mode.

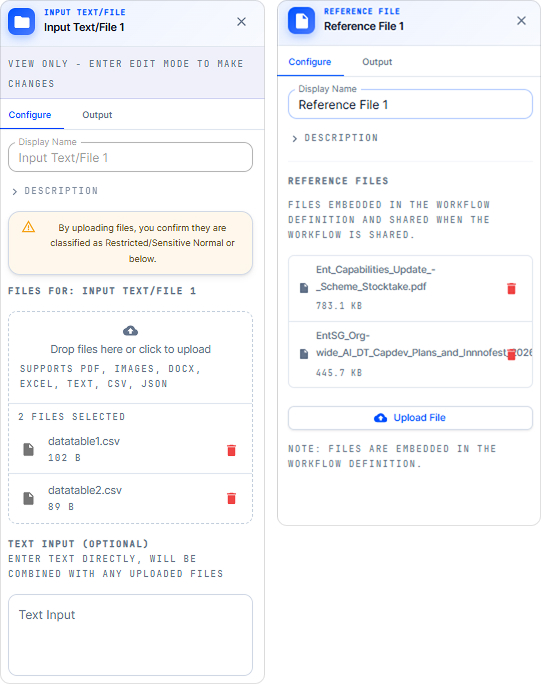

Configuration panels had the same problem as the nodes in the vibe-coded version — each one designed independently, with no shared pattern for field order, labelling, or how "view only" steps were communicated. Input File and Reference File, despite configuring near-identical things, looked and behaved like two unrelated tools.

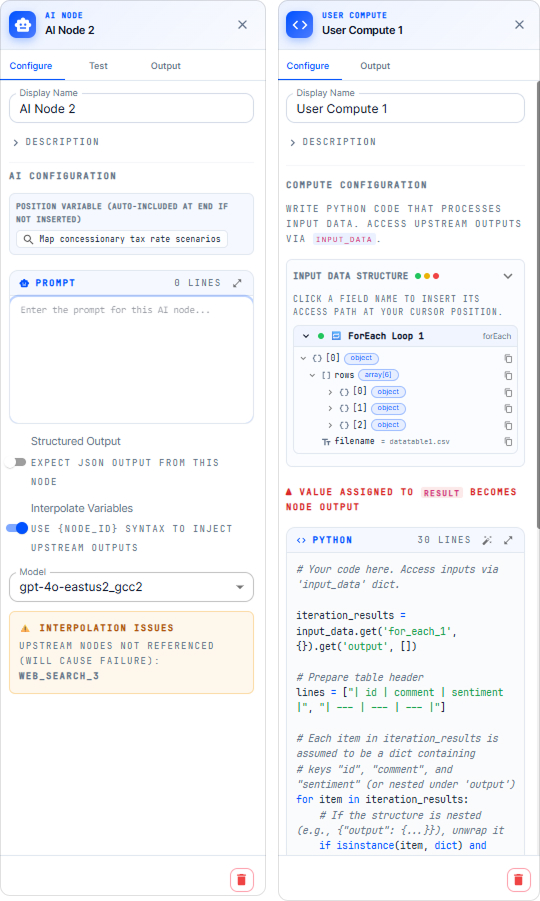

Beyond inconsistency, some config panels were simply too technical for a layman officer to use confidently — raw Python code blocks, JSON structure trees, model IDs, and interpolation syntax like {node_id} sat directly in the panel with no translation layer for someone without an engineering background.
I applied the same approach across every category — input, processing, and output — so the node library reads as one system regardless of what a node does or how complex its underlying logic is: consistent card structure and consistent state set, in both light and dark mode.
